Fuel Filter RP080026 Compatible with PCM Engine – FCC Fuel Water Separator Element Compatible with Crusader MP 5.0 5.7 6.0L EFI Engine with Canister, Pleasurecraft 5.0L 5.7L V8 GM Marine Engine

$24.99

About this item

  • Application: The fuel filter with fuel control cell canister helps to remove contaminants, such as dirt, dust, debris and rust particles from the fuel, to protect the vital parts of the engine.

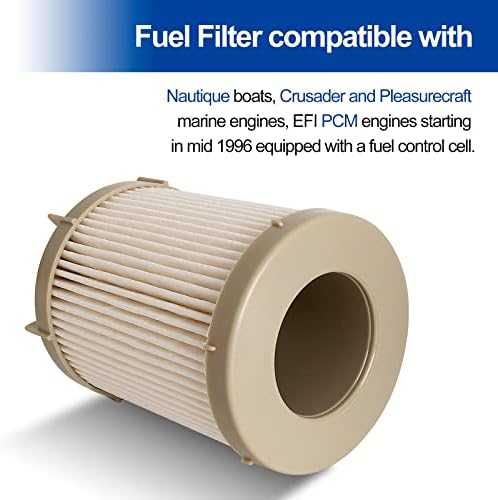

  • Compatible with: The fuel water separator element is compatible with Nautique boats, Crusader and Pleasurecraft marine engines, EFI PCM engines starting in mid 1996 equipped with a fuel control cell.

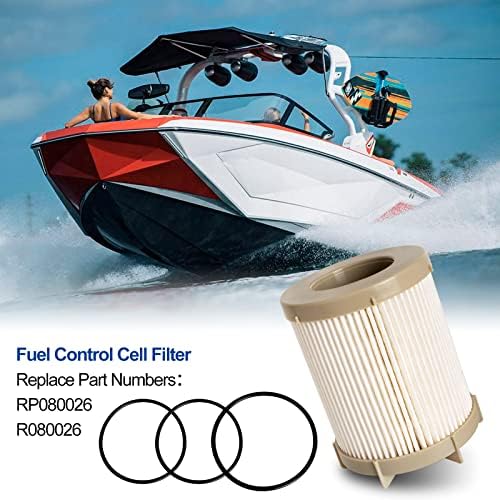

  • Replace Part Numbers: Fuel filter: RP080026, R080026. O-rings: R047214, R014241. Please check your original part number to see if this part will fit your model before purchase.

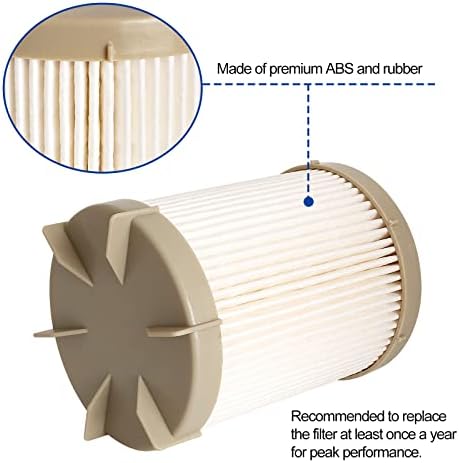

  • Material: The oil water separator is made of premium ABS material. It is recommended to replace the filter at least once a year for peak performance.
  • Package Included: 1 fuel control cell fuel filter, 1 larger o-ring (old style), 2 smaller o-rings (new style). With total height (including fin): 3.88″, diameter: 2.89″

Product information

Technical Details

Additional Information

Product Description

Fuel Filter RP080026

RP080026 FUEL FILTER

FCC fuel filter kit compatible with (but not limited to):

  • PCM EFI (Electronic Fuel Injection) engines starting in mid 1996 equipped with a fuel control cell (FCC) system.
  • PCM/Crusader/Pleasurecraft/Pleasure Craft MP 5.0 (5.0L MPI), MP 5.7 (5.7L MPI – EX 343), MP 6.0 (6.0L MPI – ZR6 390), MP 8.1, 496 8.1L V8 GM, 5.0L 5.7L V8 GM, 5.0L 5.8L Ford, 7.4L 8.2L V8 GM inboard engines.
  • Nautique boats.

Replacement part numbers:

  • Fuel filter: RP080026, R080026.
  • Rubber rings: R047214, R014241

NOTE: The above models and part numbers are for reference only. Please check your original part number to see if this part will fit your model before purchase.

Compatible with PCM Engine Crusader MP Canister Marine

Installation Tips

  1. Disconnect the two-wire electrical connectors from the FCC and the low pressure fuel pump(LPFP), as well as the fuel supply line from the LPFP.
  2. Release the canister retaining clamp with a 7/16 inch wrench, slide the canister downward, and dump the contents into an approved container.
  3. Remove the fuel filter element from the canister, and take out the old o-rings from the FCC head.
  4. Put on the new o rings, and lubricate the new o-rings to facilitate the replacement process.
  5. Slide the new filter element on the high pressure pump, put the canister back on, reinstall the retaining clamp and tighten securely.
  6. Reconnect the fuel supply line to the LPFP.
  7. Reconnect the two-wire electrical connectors to the FCC and the LPFP.
  8. Start the engine and inspect for fuel leaks.

Material: ABS

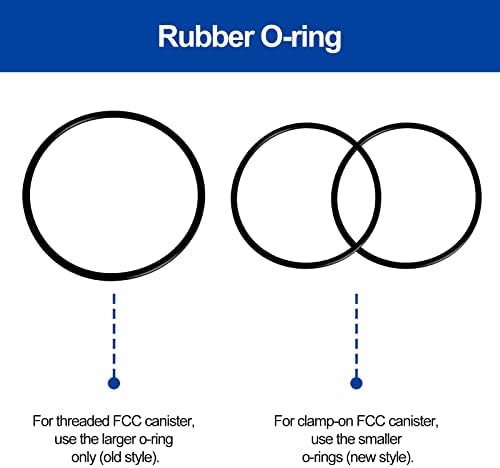

O-ring:

  • For threaded FCC canister, use the larger o-ring only (old style).
  • For clamp-on FCC canister, use the smaller o-rings (new style).

Package included: 1 fuel control cell fuel filter, 1 larger o-ring, 2 smaller o-rings.

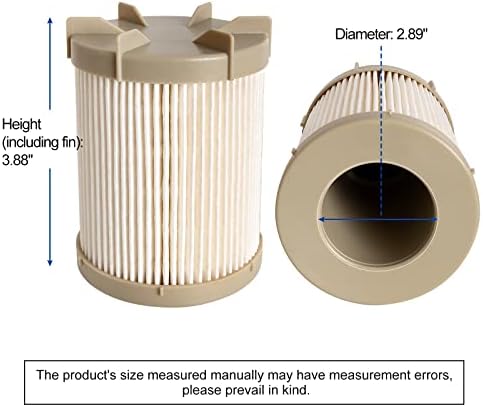

Fuel filter element size: Total height (including fin): 3.88″, diameter: 2.89″.

Note: The product’s size measured manually may have measurement errors, please prevail in kind.

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

SKU: B0B9N1CY4F Category:
